Our HVAC As Built Services help contractors and fabricators install systems efficiently and correctly the first time.
HVAC As Built Services
MEP Global providing high-quality & 100% accurate As-built Drawings Services for residential, commercial & industrial projects efficiently to Consultant, engineers & contractor, architects, homeowners, and builders As-built drawings are useful for future maintenance, planning & modification in actual design. Our As-built services will provide significant insight into the architectural, mechanical, electrical, plumbing and HVAC.
We have As-built Drawings expertise in Mechanical, Electrical & Plumbing trade. We provide detailed and accurate As built drawings with brief details as per the industry and building standards. We classify each component needed by the drawing specification, marking the location and all the attributes like name, function, shape, size, material, orientation, elevation, Specification etc. according to project demands

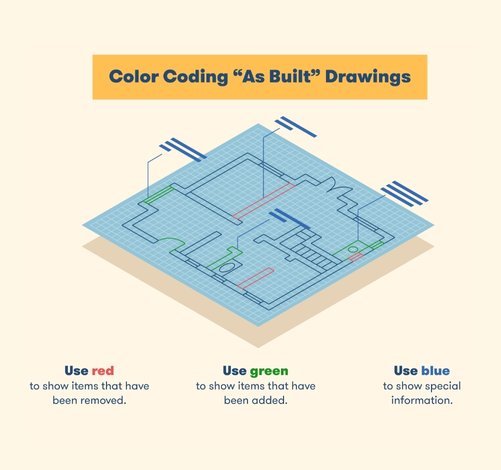

Markups to As-Built/Model Drawing
- After the installation process & on project completion, the client forwards the red markups and we provide the as-built conditions markup to our client
- We work on the markup drawings to develop the As-Built drawing of the project
- For this task, our team of engineers uses Autodesk Revit & AutoCAD as per client requirements

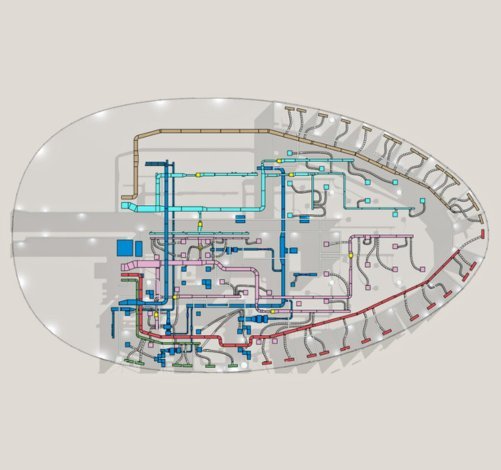

Point Cloud to As-Built BIM Modeling
- In the case of As-Built BIM modeling projects, we export the set of point cloud data into Revit (BIM platform)
- As-Built building information model with accuracy depicting pipes, Duct, Cable Trays, MEP Fixtures & Equipment's, slabs, terrain, walls, roof planes the building is delivered to the client.
AS-BUILT DRAWINGS OUTSOURCING ADVANTAGES
- Specific, professional and accurate drafts : Our engineers are qualified to use professional CAD software and tools to provide drawings as per building and quality standards
- Just send .dwg or .pdf markup files : Send your markup files to the MEP Globals team, along with a list of your needs, and we will do the rest
- Convert messy redline markups into clean drafts : As time is an important factor for Construction companies Our team is glad to take sharp, fast redline markups and sketches and quickly convert them into professional drafts
- Customizable presentation of drawings : We will include your company logo, title blocks, and revision information on the as-built drawings according to client instruction
Start Your HVAC Project Today!
